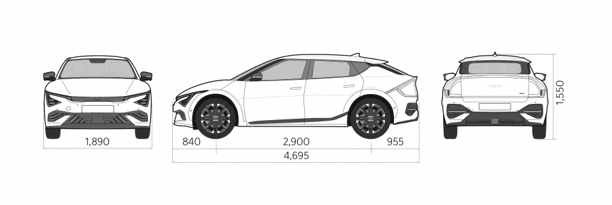

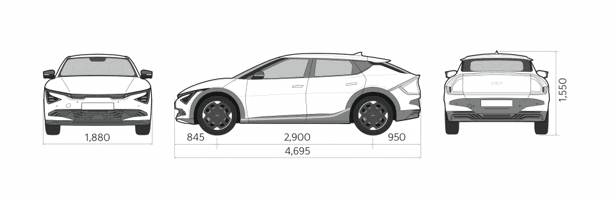

Technical specification & Dimensions (mm)

Technical specification

Engine	RWD SR (63.0kWh)	RWD (84.0 kWh)	AWD Dual Motor (84.0 kWh)
	DRIVETRAIN
Max. power, bhp at rpm	167, 3600 - 7400	225, 4600-9200	320, 4600-9200
Max. torque, Nm at rpm	350, 0 - 3400	350, 0-4400	605, 0-4400
1 speed automatic transmission	✓	✓	✓
	SUSPENSION & TYRES
Front suspension	MacPherson Multi-Link
Rear Suspension	Multi link
19" tyres	235/55R19	235/55R19	235/55R19
20" tyres	-	255/45R20	255/45R20

Engine	RWD SR (63.0kWh)	RWD (84.0 kWh)	AWD Dual Motor (84.0 kWh)
	BATTERY PACK
Battery	63.0kWh Li-ion polymer battery	84.0kWh Li-ion polymer battery	84.0kWh Li-ion polymer battery
Electric Motor Type	Permanent Magnet Synchronous Motor
Max Battery Power (kW)	195	277	277
Number of Cells	288	384	384
Nominal Voltage (V)	523	697	697
Capacity (Ah)	120.6	120.6	120.6
Battery Weight (kg)	368.6	476.2	476.2

Engine	RWD SR (63.0kWh)	RWD (84.0 kWh)	AWD Dual Motor (84.0 kWh)
	CHARGING*
AC Charge (10-100%) - (230v / 12A)	26 hrs 5 mins	34 hrs 40 mins	34 hrs 40 mins
AC Charge (10-100%) - (11kW 3-Phase Charger)	5hrs 50 mins	7 hrs 35 mins	7 hrs 35 mins
DC Charge (10-80%) - 50kw (max 125A)	58 mins	1hr 16 mins	1hr 16 mins
DC Charge (10-80%) - 350kw (max 200A)	18 mins	18 mins	18 mins

*In order to achieve the maximum charging speed, EV6 must use an 800 volt electric vehicle charger that delivers at least 260kW of electricity. Actual charging speed and charging time may be influenced by the battery temperature and weather conditions.

*Range figures are determined according to the standardised EU measurement procedure (WLTP). Individual driving style and other factors, such as speed, outside temperature, topography and the use of electricity-consuming devices/units, have an influence on the real life range and can possibly reduce it.

WLTP Pure Electric Energy Consumption & Range information	RWD SR (63.0kWh)	RWD (84.0 kWh)	AWD Dual Motor (84.0 kWh)
	19" Wheel - Air
Max Speed (mph)	115	115	-
Acceleration 0-62 mph (seconds)	8.7	7.7	-
Electric Energy Consumption (Wh/km) - City	109	121	-
Electric Energy Consumption (Wh/km) - Combined	164	159	-
Range (mi) - City	400	475	-
Range (mi) - Combined	265	361	-
Carbon Dioxide (CO2) Emissions (g/km)	0	0	-
Noise Level Moving dB	67	67	-

WLTP Pure Electric Energy Consumption & Range information	RWD SR (63.0kWh)	RWD (84.0 kWh)	AWD Dual Motor (84.0 kWh)
	19" Wheel - GT-Line
Max Speed (mph)	-	115	116
Acceleration 0-62 mph (seconds)	-	7.7	5.3
Electric Energy Consumption (Wh/km) - City	-	121	131
Electric Energy Consumption (Wh/km) - Combined	-	159	170
Range (mi) - City	-	475	443
Range (mi) - Combined	-	361	339
Carbon Dioxide (CO2) Emissions (g/km)	-	0	0
Noise Level Moving dB	-	67	67

WLTP Pure Electric Energy Consumption & Range information	RWD SR (63.0kWh)	RWD (84.0 kWh)	AWD Dual Motor (84.0 kWh)
	20" Wheel - GT-Line S (inc. Heat Pump version)
Max Speed (mph)	-	115	116
Acceleration 0-62 mph (seconds)	-	7.7	5.3
Electric Energy Consumption (Wh/km) - City	-	126	139
Electric Energy Consumption (Wh/km) - Combined	-	169	177
Range (mi) - City	-	466	415
Range (mi) - Combined	-	347	324
Carbon Dioxide (CO2) Emissions (g/km)	-	0	0
Noise Level Moving dB	-	67	67

Engine	RWD SR (63.0kWh)	RWD (84.0 kWh)	AWD Dual Motor (84.0 kWh)
	VEHICLE WEIGHT & CAPACITY INFORMATION
Gross vehicle weight (kg) (19" / 20" Wheel)	2,405	2,495	2,600
Kerb weight	1,955	2,065	2,165
Maximum braked trailer weight	750	1,800	1,800
Maximum tow ball weight	100	100	100
Luggage compartment capacity, rear seats upright, litres (W/O premium Sound/W Premium sound)	490	490 / 480	490 / 480
Luggage compartment capacity, Front	52	52	20
Minimum turning circle (m)	11.62	11.62	11.62

View the new EV6 Offers

Test Drive the new EV6

Engine	RWD SR (63.0kWh)	RWD (84.0 kWh)	AWD Dual Motor (84.0 kWh)
	VEHICLE INSURANCE GROUPS
Air	TBC	34E	-
GT-Line	-	35E	40E
GT-Line S	-	37E	40E
	SERVICE INTERVALS
	2 years / 20,000 miles
