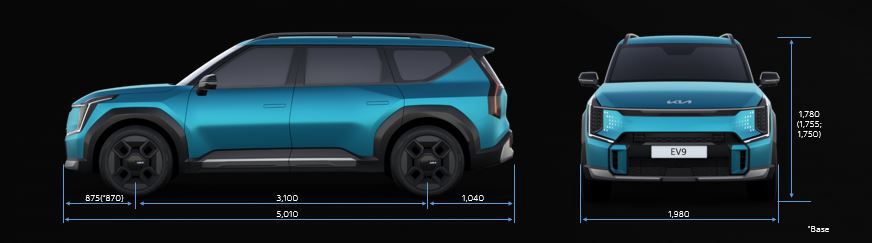

Technical specification & Dimensions (mm)
Engine
RWD (200 BHP)
AWD Dual Motor (378 BHP)
DRIVETRAIN
Max. Power, kW at rpm
149.5, 4,200 ~ 8,200
282.6, 4,000 ~ 7,800
Max. Power, bhp at rpm
200 , 4,200 - 8,200
378 , 4,000 - 7,800
Max. Torque, Nm at rpm
350, 0 - 4,000
700, 0 - 3,800
1 Speed Automatic Transmission
✓
SUSPENSION & TYRES
Front suspension
Macpherson Multi-Link
Rear Suspension
5-Arm Multi-Link
19" tyres
255/60R19
20" tyres
275/50R20
21" tyres
285/45R21
BATTERY PACK
Battery
99.8kWh Li-ion polymer battery
Electric Engine
Permanent Magnet Synchronous Motor
Max Power (kW)
318
Number of Cells
456
Nominal Voltage (V)
552
Capacity (Ah)
181
Battery Weight (kg)
567
Battery Position
Under the cabin area
Test Drive EV9
View EV9 Offers
CHARGING*
AC Normal Charge (10-100%) - (230v/12A)
40 hr 35 min
AC Normal Charge (10-100%) - (230v/48A)
9 hr 5 min
DC Fast Charge (10-80%) - 50kw (max 125A)
1 hr 23 min
DC Fast Charge (10-80%) - 350kw (max 310A)
24 min
*In order to achieve the maximum charging speed, EV9 must use an 800 volt electric vehicle charger that delivers at least 210kW of electricity. Actual charging speed and charging time may be influenced by the battery temperature and weather condition
**Range figures are determined according to the standardised EU measurement procedure (WLTP). Individual driving style and other factors, such as speed, outside temperature, topography and the use of electricity-consuming devices/units, have an influence on the real life range and can possibly reduce it.
Build your Kia EV9
WLTP fuel consumption, emissions and performance information**
19" Wheel - Air
Maximum Speed (mph)
114
-
Acceleration 0-62 mph (seconds)
9.4
Electric Energy Consumption (mi/kWh) - City
4.2
Electric Energy Consumption (mi/kWh) - Combined
3.1
Range (mi) - City
480
Range (mi) - Combined
349
Carbon Dioxide (CO2) Emissions (g/km)
0
Noise Level Moving (dB)
67
20" Wheel - GT-Line
124
5.3
3.8
2.8
434
316
68
21" Wheel - GT-Line S
3.7
415
313
VEHICLE WEIGHT & CAPACITY INFORMATION
Gross vehicle weight (kg)
3,070
3,240 (7-seater) / 3,190 (6-seater)
Kerb weight (kg)
2,492
2,648 (7-seater) / 2,674 (6-seater)
3,970
5,740 (7-seater) / 5,690 (6-seater)
900
2,500
Luggage Compartment Capacity, Behind 3rd Row Seats Upright, Litres
45
125
Luggage Compartment Capacity, Behind 2nd Row Seats Upright, Litres
333
Luggage Compartment Capacity, Behind 1st Row Seats Upright, Litres
828
Luggage Compartment Capacity, Front
2,318
2,318 (7-seater) / 2,393 (6-seater)
Minimum Turning Circle (m)
90
52
VEHICLE INSURANCE GROUPS
Air
45E
GT-Line
50E
GT-Line S
SERVICE INTERVALS
20,000 miles or 24 months, whichever occurs sooner
