Technical specification

Engine	1.6 T-GDi MT (147 BHP) 2WD	1.6 T-GDi DCT (147 BHP) 2WD	1.6 T-GDi HEV (235 BHP) 2WD	1.6 T-GDi HEV (235 BHP) AWD
	DRIVETRAIN
Cubic Capacity	1,598	1,598	1,598	1,598
Max. Power, kW at rpm	110.3 , 6,000	110.3 , 6,000	175.7, 6,000	175.7, 6,000
Max. Power, bhp at rpm	147 , 6,000	147 , 6,000	235 , 6,000	235 , 6,000
Max. Torque, Nm at rpm	250 , 1,500	250 , 1,500	380 , 1,500	380 , 1,500
6 Speed Manual	✔	-	-	-
7 Speed Auto Dual-Clutch Transmission (DCT)	-	✔	-	-
6 Speed Auto (6AT)	-	-	✔	✔

Request an appointment

		1.6 T-GDi MT (147 BHP) 2WD	1.6 T-GDi DCT (147 BHP) 2WD	1.6 T-GDi HEV (235 BHP) 2WD	1.6 T-GDi HEV (235 BHP) AWD
		Powertrain
'Pure'		✔	-	✔	-
'GT-Line'		✔	✔	✔	-
Storm		✔	✔	✔	-
'GT-Line S'		-	✔	✔	✔
		Suspension and Tyres
Front Suspension		Macpherson Strut
Rear Suspension		Multi Link (4-Link)
17" Tyres		TBC	-	TBC	TBC
18" Tyres		TBC	TBC	-	-
19" Tyres		-	-	TBC	235/50 R19

	1.6 T-GDi MT (147 BHP) 2WD	1.6 T-GDi DCT (147 BHP) 2WD	1.6 T-GDi HEV (235 BHP) 2WD	1.6 T-GDi HEV (235 BHP) AWD
	Fuel
Fuel Type	Petrol	Petrol	Petrol	Petrol
Fuel Tank Capacity, Litres	54	54	52	52
	Battery Pack
Battery	-	-	1.49kWh Li-ion polymer battery	1.49kWh Li-ion polymer battery
Hybrid Type	-	-	TMED	TMED
Max Power (kW)	-	-	72	72
Number of Cells	-	-	TBC	TBC
Nominal Voltage (V)	-	-	270.0	270.0
Capacity (Ah)	-	-	5.5	5.5
Battery Weight (Kg)	-	-	64	64
Battery Position	-	-	Under Rear Seat	Under Rear Seat

	1.6 T-GDi MT (147 BHP) 2WD	1.6 T-GDi DCT (147 BHP) 2WD	1.6 T-GDi HEV (235 BHP) 2WD	1.6 T-GDi HEV (235 BHP) AWD
	Regulated emissions
Carbon Monoxide (mg/km)	TBC	TBC	TBC	360
Total Hydrocarbons (mg/km)	TBC	TBC	TBC	17
Nitrogen Oxide (mg/km)	TBC	TBC	TBC	21
Particulate Matter (mg/km)	TBC	TBC	TBC	0.27

Test Drive Sportage

WLTP Fuel Consumption, Emissions & Performance Information	1.6 T-GDi 48V MT (157 BHP) 2WD	1.6 T-GDi 48V DCT (157 BHP) 2WD	1.6 T-GDi HEV (212 BHP) 2WD	1.6 T-GDi HEV (212 BHP) AWD
	17" Wheel ‘Pure’
Maximum Speed (mph)	119	-	121	-
Acceleration 0-62 mph (Seconds)	9.7	-	7.9	-
Fuel Consumption - Low MPG (l/100km)	32.1 (8.8)	-	46.3 (6.1)	-
Fuel Consumption - Medium MPG (l/100km)	41.5 (6.8)	-	61.4 (4.6)	-
Fuel Consumption - High MPG (l/100km)	46.3 (6.1)	-	60.1 (4.7)	-
Fuel Consumption - Extra High MPG (l/100km)	39.7 (7.1)	-	42.8 (6.6)	-
Fuel Consumption - Combined MPG (l/100km)	40.3 (7)	-	50.4 (5.6)	-
Fuel Consumption - Weighted Combined MPG (l/100km)	-	-	-	-
Electric Energy Consumption (Wh/km) (Weighted)	-	-	-	-
Range (mi) - Combined	-	-	-	-
Regulated Emission Standard	Euro 6E	-	Euro 6E	-
Carbon Dioxide (CO₂) Emissions (g/km)	158	-	126	-
Noise Level Moving/Stationary (dB)	66 / 72	-	64 / 75	-

WLTP Fuel Consumption, Emissions & Performance Information	1.6 T-GDi 48V MT (157 BHP) 2WD	1.6 T-GDi 48V DCT (157 BHP) 2WD	1.6 T-GDi HEV (212 BHP) 2WD	1.6 T-GDi HEV (212 BHP) AWD
	18" Wheel (GT-Line )
Maximum Speed (mph)	119	119	-	-
Acceleration 0-62 mph (Seconds)	9.7	9.7	-	-
Fuel Consumption - Low MPG (l/100km)	32.1 (8.8)	32.1 (8.8)	-	-
Fuel Consumption - Medium MPG (l/100km)	41.5 (6.8)	41.5 (6.8)	-	-
Fuel Consumption - High MPG (l/100km)	45.6 (6.2)	45.6 (6.2)	-	-
Fuel Consumption - Extra High MPG (l/100km)	39.2 (7.2)	39.2 (7.2)	-	-
Fuel Consumption - Combined MPG (l/100km)	40.3 (7)	40.3 (7)	-	-
Fuel Consumption - Weighted Combined MPG (l/100km)	-	-	-	-
Electric Energy Consumption (Wh/km) (Weighted)	-	-	-	-
Range (mi) - Combined	-	-	-	-
Regulated Emission Standard	Euro 6E	Euro 6E	-	-
Carbon Dioxide (CO₂) Emissions (g/km)	159	159	-	-
Noise Level Moving/Stationary (dB)	66 / 72	66 / 72	-	-

WLTP Fuel Consumption, Emissions & Performance Information	1.6 T-GDi 48V MT (157 BHP) 2WD	1.6 T-GDi 48V DCT (157 BHP) 2WD	1.6 T-GDi HEV (212 BHP) 2WD	1.6 T-GDi HEV (212 BHP) AWD
	18" Wheel (Storm)
Maximum Speed (mph)	119	119		121
Acceleration 0-62 mph (Seconds)	9.7	9.4		7.9
Fuel Consumption - Low MPG (l/100km)	32.1 (8.8)	30.0 (9.4)		44.1 (6.4)
Fuel Consumption - Medium MPG (l/100km)	40.9 (6.9)	42.1 (6.7)		60.1 (4.7)
Fuel Consumption - High MPG (l/100km)	45.5 (6.2)	47.8 (5.9)		60.1 (4.7)
Fuel Consumption - Extra High MPG (l/100km)	39.2 (7.2)	38.1 (7.4)		42.8 (6.6)
Fuel Consumption - Combined MPG (l/100km)	39.7 (7.1)	39.7 (7.1)		50.4 (5.6)
Fuel Consumption - Weighted Combined MPG (l/100km)	-	-		-
Electric Energy Consumption (Wh/km) (Weighted)	-	-		-
Range (mi) - Combined	-	-		-
Regulated Emission Standard	Euro 6E	Euro 6E		Euro 6E
Carbon Dioxide (CO₂) Emissions (g/km)	160	161		127
Noise Level Moving/Stationary (dB)	66 / 72	65 / 72		64 / 75

WLTP Fuel Consumption, Emissions & Performance Information	1.6 T-GDi 48V MT (157 BHP) 2WD	1.6 T-GDi 48V DCT (157 BHP) 2WD	1.6 T-GDi HEV (212 BHP) 2WD	1.6 T-GDi HEV (212 BHP) AWD
	18" Wheel (GT-Line S)
Maximum Speed (mph)	-	119	-	-
Acceleration 0-62 mph (Seconds)	-	9.4	-	-
Fuel Consumption - Low MPG (l/100km)	-	29.7 (9.5)	-	-
Fuel Consumption - Medium MPG (l/100km)	-	41.5 (6.8)	-	-
Fuel Consumption - High MPG (l/100km)	-	47.1 (6.0)	-	-
Fuel Consumption - Extra High MPG (l/100km)	-	38.1 (7.4)	-	-
Fuel Consumption - Combined MPG (l/100km)	-	39.8 (7.1)	-	-
Fuel Consumption - Weighted Combined MPG (l/100km)	-	-	-	-
Electric Energy Consumption (Wh/km) (Weighted)	-	-	-	-
Range (mi) - Combined	-	-	-	-
Regulated Emission Standard	-	Euro 6E	-	-
Carbon Dioxide (CO₂) Emissions (g/km)	-	162	-	-
Noise Level Moving/Stationary (dB)	-	65 /72	-	-

WLTP Fuel Consumption, Emissions & Performance Information	1.6 T-GDi 48V MT (157 BHP) 2WD	1.6 T-GDi 48V DCT (157 BHP) 2WD	1.6 T-GDi HEV (212 BHP) 2WD	1.6 T-GDi HEV (212 BHP) AWD
	19" Wheel (GT-Line)
Maximum Speed (mph)	-	-	121	-
Acceleration 0-62 mph (Seconds)	-	-	7.9	-
Fuel Consumption - Low MPG (l/100km)	-	-	46.3 (6.1)	-
Fuel Consumption - Medium MPG (l/100km)	-	-	60.0 (4.7)	-
Fuel Consumption - High MPG (l/100km)	-	-	58.9 (4.8)	-
Fuel Consumption - Extra High MPG (l/100km)	-	-	42.2 (6.7)	-
Fuel Consumption - Combined MPG (l/100km)	-	-	50.4 (5.6)	-
Fuel Consumption - Weighted Combined MPG (l/100km)	-	-	-	-
Electric Energy Consumption (Wh/km) (Weighted)	-	-	-	-
Range (mi) - Combined	-	-	-	-
Regulated Emission Standard	-	-	Euro 6E	-
Carbon Dioxide (CO₂) Emissions (g/km)	-	-	128	-
Noise Level Moving/Stationary (dB)	-	-	64 / 75	-

WLTP Fuel Consumption, Emissions & Performance Information	1.6 T-GDi 48V MT (157 BHP) 2WD	1.6 T-GDi 48V DCT (157 BHP) 2WD	1.6 T-GDi HEV (212 BHP) 2WD	1.6 T-GDi HEV (212 BHP) AWD
	19" Wheel (GT-Line S)
Maximum Speed (mph)	-	-	121	121
Acceleration 0-62 mph (Seconds)	-	-	7.9	8.1
Fuel Consumption - Low MPG (l/100km)	-	-	45.5 (6.2)	38.6 (7.3)
Fuel Consumption - Medium MPG (l/100km)	-	-	58.85 (4.8)	50.4 (5.6)
Fuel Consumption - High MPG (l/100km)	-	-	56.5 (5.0)	51.3 (5.5)
Fuel Consumption - Extra High MPG (l/100km)	-	-	41.54 (6.8)	38.6 (7.3)
Fuel Consumption - Combined MPG (l/100km)	-	-	48.7 (5.8)	44.1 (6.4)
Fuel Consumption - Weighted Combined MPG (l/100km)	-	-	-	-
Electric Energy Consumption (Wh/km) (Weighted)	-	-	-	-
Range (mi) - Combined	-	-	-	-
Regulated Emission Standard	-	-	Euro 6E	Euro 6E
Carbon Dioxide (CO₂) Emissions (g/km)	-	-	130	145
Noise Level Moving/Stationary (dB)	-	-	64 / 75	64/75

	1.6 T-GDi 48V MT (157 BHP) 2WD	1.6 T-GDi 48V DCT (157 BHP) 2WD	1.6 T-GDi HEV (212 BHP) 2WD	1.6 T-GDi HEV (212 BHP) AWD
	Vehicle Weight and capacity information
Gross Vehicle Weight (kg)	2,095	2,170	2,215	2,285
Kerb Weight (kg)	1,547	1,590	1665	1,733
Gross Train Weight (kg)	3,745	3,820	3,725	3,795
Maximum Braked Trailer Weight (kg)	1,650	1,650	1,510	1,510
Maximum Tow Ball Weight (kg)	100	100	100	100
Luggage Compartment Capacity, Rear Seats Upright, Litres	591	591	587	587
Luggage Compartment Capacity, Rear Seats Folded, Litres	1780	1780	1776	1776
Minimum Turning Circle (m)	11

Grade	1.6 T-GDi 48V MT (157 BHP) 2WD	1.6 T-GDi 48V DCT (157 BHP) 2WD	1.6 T-GDi HEV (212 BHP) 2WD	1.6 T-GDi HEV (212 BHP) AWD
	Vehicle insurance groups
'Pure'	19E	-	23E	-
'GT-Line'	19E	20E	23E	-
Storm	TBC	TBC	TBC	-
'GT-Line S'	-	22E	25E	26E
	Service intervals
All derivatives	12 Months / 10,000 Miles, whichever comes sooner

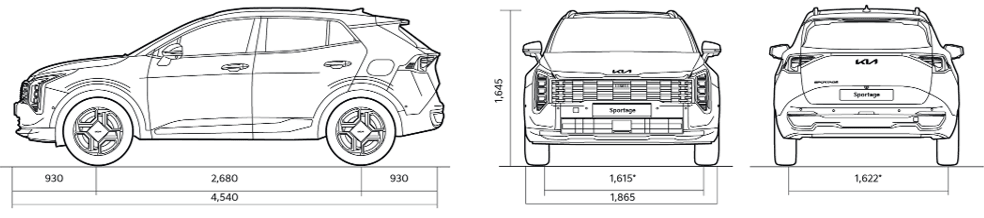

Dimensions
